NETCONF beginner
With more and more network equipment, we have lot of vendors.Recently I came up with the idea of making a cross-vendor SDN controller.After learning Python, I stumbled my way to NetDevOps.First of all, I would like to thank the authors of : Wang Yin and Zhu Jiasheng.It was they who introduced me to the new field of network operation automation.
Different vendors have different API interfaces for their devices. However, most of their devices comply with the RFC standard and support Netconf protocol for device interaction.I recently selected Huawei S5720S-28P-SI-AC for Netconf experiment, and used the ncclient module in Python for device communication.
What is Netconf
NETCONF is a network protocol developed and standardized by the Internet Engineering Task Force (IETF).So far, IETF has published multiple Requests For Comments (RFCS) related to NETCONF. Including RFC 6241 (NETCONF Protocol) and RFC 6020 (YANG -- A Data Modeling Language for the Network Configuration Protocol).These standards regulate the basic syntax and operation of the NETCONF protocol, as well as the specification of the YANG data model.
NETCONF is being supported by more and more network equipment vendors, such as Cisco, Huawei, Juniper, and others. This cross-platform API gives us a ripe condition to develop customized, cross-vendor SDN controllers.
Simply, Netconf is a unified API that allows you to interact with devices without having to worry about command differences between vendors.
For example, the command for obtaining device configuration is "show run" for Cisco and "display cur" for Huawei
THE SAME IS TRUE IF YOU USE NETCONF'S GET METHOD
Introduction to Yang Model
YANG is a network data modeling language based on XML. It is a file that defines data models and module structures for modeling data in network devices and protocols. Each YANG model consists of one or more modules, each containing declarations that describe the data, attributes, and relationships in the device or protocol.
The YANG model based on XML is a tree structure with layers of nesting, much like HTML
For example, an XML file that gets port information looks like this:
<?xml version='1.0' encoding='UTF-8'?>
<rpc message-id="1" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<get>
<filter type="subtree">
<if:interfaces-state xmlns:if="urn:ietf:params:xml:ns:yang:ietf-interfaces">
<if:interface>
<if:name>XGigabitEthernet0/0/3</if:name>
</if:interface>
</if:interfaces-state>
</filter>
</get>
</rpc>
Where<?xml version='1.0' encoding='UTF-8'?>is the declaration that the XML file must be written, containing the version of the XML file and the encoding format.
<rpc message-id="1" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">NETCONF is based on RPC protocol for interaction.rpc message-id="1"The mandatory attribute of an RPC message, usually counting from 1, serves as an identifier. It is a bit like SYN in TCP.
In the NETCONF protocol, all XML elements and attributes must use a namespace to identify the NETCONF module to which they belong. According to the NETCONF standard, all NETCONF internal elements and attributes are urn: ietf: params: XML: ns: NETCONF: base: 1.0 namespace. Therefore, if there is no statement other namespace in the XML document, will be the default namespace urn: ietf: params: XML: ns: netconf: base: 1.0
So what is a namespace? Wikipedia says that "namespaces are a special abstraction of scopes." For example, A and B work in different companies. A's work number is 001, and B's work number is also 001, but they belong to different companies, so there is no confusion. These two different companies, the namespaces, specify the scope.
The first little experiment
Experimental objective: To use ncclient module to carry out netconf interaction, obtain the information of G0/0/10 port, and process the XML text in the output
Experimental tools: Python, S5720S-28P-SI-AC
Preparation for experiment:

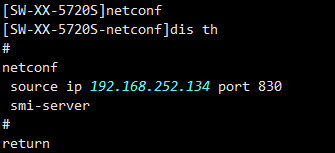

1. Enable NETCONF. Although the default NETCONF port is 830, you need to run the command again in the NETCONF view to specify the port. Otherwise, the port does not take effect.
Experimental code:
In this experiment, the ncclient module was used to interact with the device, which provides a convenient set of Python interfaces for building and parsing NETCONF messages, as well as handling XML and YANG data types. Also, since the returned information is based on XML formatted text, we use the xmltodict module to process XML formatted text for readability
1. Connect to the device and push netconf messages
from ncclient import manager
import xmltodict
# 定义设备连接信息/define the connect information for device
huawei_device = {
'host': '192.168.252.134',
'username': 'zhaoyuqi',
'password': '**********',
'port': 830,
'device_params': {'name': 'huaweiyang'},
'hostkey_verify': False,
'look_for_keys': False,
}
#定义XML格式的netconf命令/define the netconf command in XML format
xml_filter = '''
<filter type="subtree">
<interfaces-state xmlns="urn:ietf:params:xml:ns:yang:ietf-interfaces">
<interface>
<name>GigabitEthernet0/0/1</name>
</interface>
</interfaces-state>
</filter>
'''
#连接设备并发送XML格式的netconf命令给设备/Connect to the device and send netconf commands in XML format to the device
with manager.connect(**huawei_device) as m:
response = m.get(xml_filter)In this code, we define a dictionary of huawei_device, which is then used as an argument to the connect method. xml_filter constructs a message body conforming to the NETCONF format. As you can see, there is no need to declare the version and namespace of the XML in the message body, because the ncclient module we use constructs the standard message body for us.
In the NETCONF protocol, the node is the key node used to specify the specific data to get or manipulate. The node has two important properties: type and select, which determine the type and parameters of the filter. Use the node when you want to get a partial XML document rather than the entire document. There are two common ways to choose the type of filter: XPath filters and subtree filters.
indicates that the filter attribute is a subtree filter. XPath filters are not recommended because they burden the device.
This is a namespace declaration, Declare that the following elements and attributes belong to the ietf-interfaces namespace.
Finally, the CONNECT method is used to push the message to the device and get the device echo.

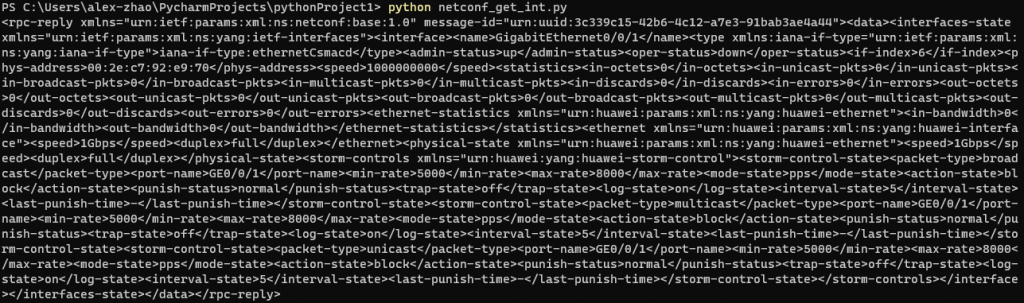

If we print out response
print(response)
You can see the following information
You can see that the device also replies with an XML message. (You can use the XML tool to redisplay this echo code into a readable structure.)
We need to convert the XML text into dictionary format by adding the following code
#将设备回应的XML格式的文本转成字典格式/Converts the XML text that the device responds to into dictionary format
response_dict = xmltodict.parse(response.xml)
print(response_dict)

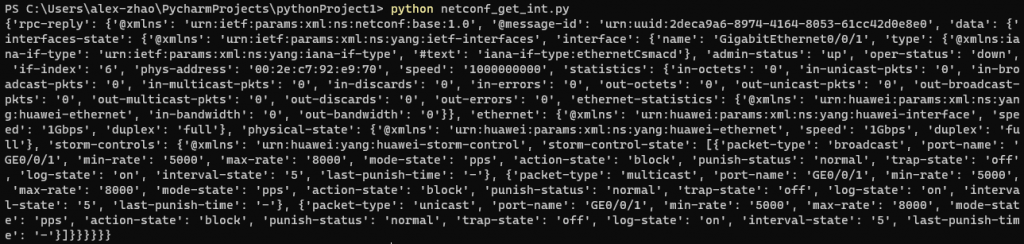

As you can see, it has been converted to layers of nested dictionary format text. We use the for loop to go through the dictionary, to print out the information that we want. Add the following code:
#用for循环来提取字典的数据并输出/Use a for loop to extract the dictionary data and output it
interfaces = response_dict['rpc-reply']['data']['interfaces-state']['interface']
for i in interfaces:
if 'name' in i:
print(i,":",interfaces[i])
if 'speed' in i:
print(i,":",interfaces[i])
if 'phys-address' in i:
print(i,":",interfaces[i])
if 'admin-status' in i:
print(i, ":", interfaces[i])
if 'oper-status' in i:

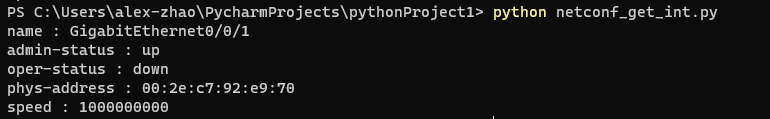

print(i, ":", interfaces[i])When we execute the script, we can see that the output is the information we want
Summary
In the above small experiments, we used the ncclient module for device interaction, pushing NETCONF messages and obtaining device echo. We then used the xmltodict module to process the text in XML format and eventually output the result we wanted.
The core function of a SDN controller must be configuration delivery, so in the next article, I will conduct configuration modification experiment.
